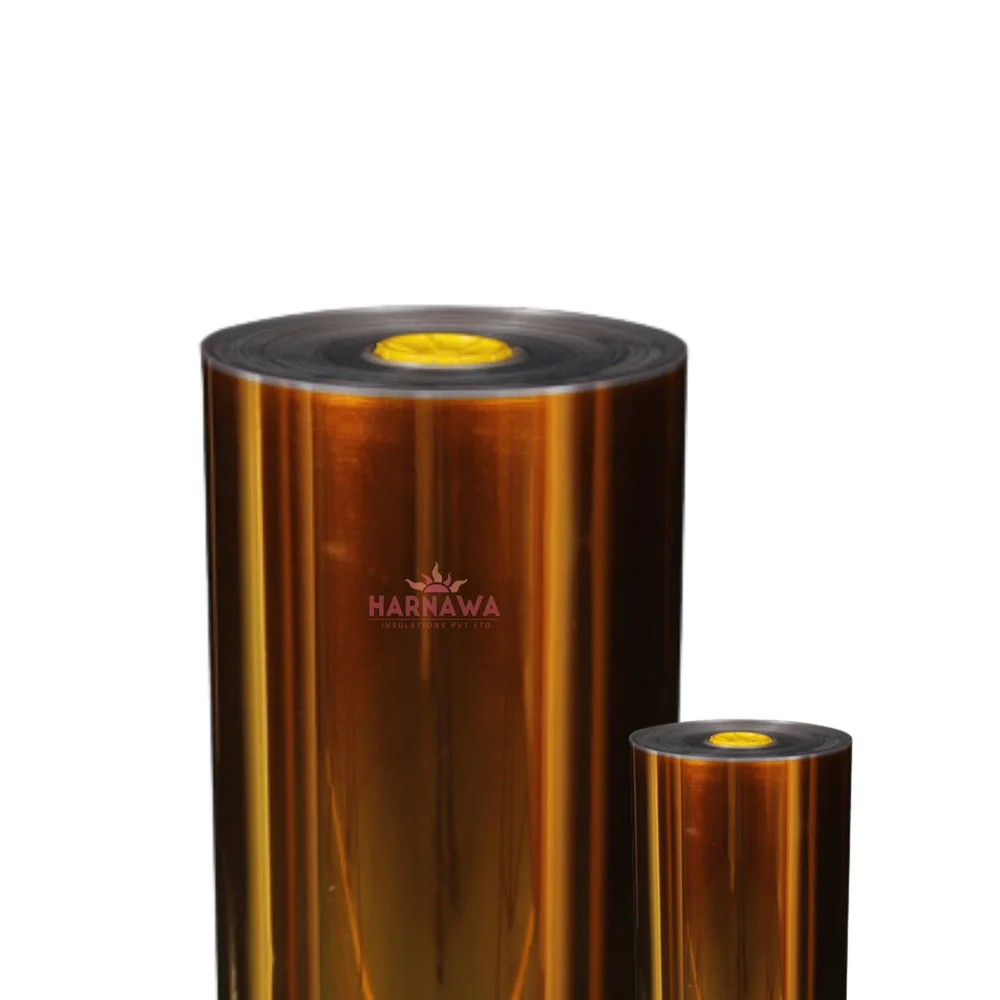

FEP Polyimide Film
FEP Polyimide Film
FEP Polyimide Film (FH/FHF series) manufacturer in India — INSOURCES EXIM PVT LTD. PI film coated with FEP fluoropolymer on one or both sides. Thickness 30–100 μm, breakdown strength ≥160 MV/m, heat sealable, moisture resistant. CE, RoHS certified. Bulk supply, custom sizes, pan-India delivery.
Priced per requirement — tell us grade, width, thickness and quantity and we quote against it.
INSOURCES EXIM PVT LTD is a leading FEP polyimide film manufacturer in India, supplying FH (one-side coated) and FHF (both-sides coated) series to flexible circuit manufacturers, cable insulation suppliers and motor winding OEMs across India and internationally. FEP polyimide film combines the high-temperature electrical insulation of kapton-type polyimide film with the heat sealability and chemical barrier of FEP fluoropolymer — enabling adhesive-free lamination in FPC and cable manufacturing processes.
Whether you need FEP coated polyimide film for flexible printed circuits, heat-sealable coverlay, cable wrapping or motor insulation, INSOURCES supplies both FH and FHF grades directly from our Bhiwandi facility with 2–5 working day lead times and custom slit widths available.
What is FEP Polyimide Film?
FEP polyimide film is a composite film where a kapton-type polyimide (PI) base film is coated with FEP (Fluorinated Ethylene Propylene) fluoropolymer on one side (FH grade) or both sides (FHF grade). The FEP coating makes the film heat sealable — it can be thermally bonded to copper foil or other substrates without adhesives, which is the standard method for manufacturing flexible printed circuit board (FPC) laminates.
FH grade (30–50 μm) is used for single-side bonding; FHF grade (51–100 μm) provides double-side bonding and maximum moisture protection from both surfaces.
| Base Material | Kapton-type polyimide film (PMDA-ODA) |
| Coating | FEP (Fluorinated Ethylene Propylene) fluoropolymer |
| Key Advantage | Heat sealable — adhesive-free lamination at elevated temperature |
| Temperature Range | -269°C to +400°C |
| Flame Retardancy | Self-extinguishing, UL 94 V-0, halogen-free, RoHS/REACH compliant |
Polyimide Film Types & Grades — Full Range
INSOURCES manufactures the complete range of kapton-type polyimide film grades. FEP Coated Film (highlighted below) is engineered for heat sealability and enhanced moisture/chemical resistance:
| Grade / Series | Type Code | Description & Key Use |
| HN Series | Standard | General purpose kapton-type polyimide film, 0.5–10 mil. High dielectric strength and chemical resistance. |
| FEP Polyimide Film — This Product | FH / FHF | FEP fluoropolymer coated polyimide film, one or both sides. Heat sealable, moisture barrier, enhanced chemical resistance. 30–100 μm. |
| Black PI Film | BX / BY / BL | Opaque black polyimide film, light-blocking, 13–125 μm. |
| ESD PI Film | Functional | Anti-static polyimide film for PCB protection. ESD surface: 10⁵–10⁹ Ω. |
| Aluminized PI Film | Functional | Sputtered aluminium on polyimide film for EMI shielding. 25–250 μm. |
| CR Film | CR / FCR / FCRF | Corona resistant polyimide film, ≥80 hr corona resistance. For VFD motors. |
| Thermal-Conductive | MT Series | Polyimide film with thermal conductivity >0.36 W/m·K. For EV and power electronics. |
| NHN Composite | Laminate | Non-woven/polyimide film/non-woven laminate. 0.15–0.35 mm. Breakdown: 8–10 kV. |
| Colourful PI Film | Specialty | Red, Green and Transparent polyimide film — colour-stable at high temperature. |
| Voice Coil Film | Specialty | High dimensional stability polyimide film for loudspeaker voice coil formers. |
Typical Applications of FEP Polyimide Film
- FPC substrates (FCCL)
- Heat-sealable coverlay film
- Flexible heaters
- Electronic component mounting
- Flexible circuit laminates
- Motor winding insulation
- Cable & wire wrapping
- Transformer insulation
- High-temp slot liners
- Moisture-resistant insulation
- Aircraft wiring laminates
- Satellite thermal insulation
- Thermal protection systems
- Radiation-resistant films
- Military electronics
- Heat-sealable tape base
- EMI shielding laminates
- High-temp identification labels
- EV battery insulation
- Solar panel films
Key Features & Benefits
- Heat Sealable: FEP coating enables adhesive-free thermal bonding — simplifies FPC and cable laminate production
- Superior Moisture Barrier: FEP layer blocks moisture ingress — critical for long-term flexible circuit reliability
- Enhanced Chemical Resistance: FEP resists virtually all industrial chemicals, solvents and fuels
- High Breakdown Strength: ≥160 MV/m (FH) / ≥130 MV/m (FHF) — reliable electrical insulation
- Strong Peel Strength: FEP-FEP bond ≥6 N/25mm — secure lamination for FPC manufacturing
- High Volume Resistivity: ≥1×10¹⁵ Ω·cm — same as standard kapton polyimide film
- Extreme Temperature Range: -269°C to +400°C continuous operation
- RoHS / REACH Compliant: Safe for export to EU, USA and global markets
Technical Specifications — FEP Polyimide Film
| Property | Unit | FH (One Side) | FHF (Both Sides) |
| Thickness | μm | 30–50 | 51–100 |
| Tensile Strength MD/TD | MPa | ≥110 / ≥100 | ≥110 / ≥100 |
| Elongation | % | ≥50 | ≥50 |
| Breakdown Strength | MV/m | ≥160 | ≥130 |
| Peel Strength (FEP-FEP) | N/25mm | ≥6 | ≥6 |
| Volume Resistivity | Ω·cm | ≥1×10¹⁵ | ≥1×10¹⁵ |
| Standard Width | mm | 520 mm (custom available) | |
| Temperature Range | °C | -269°C to +400°C | |
Certifications & Compliance
CE ListedEuropean Conformity — required for all EU market sales
Mil-P-46123Type 1, Item A — US Military performance specification
RoHS CompliantRestriction of Hazardous Substances — EU directive
REACH CompliantEU Chemical Safety regulation for export markets
UL 94 V-0Highest flame retardancy rating — self-extinguishing
ISO 9001International quality management system certification
ISO 14001Environmental management system certification
Halogen-FreeNo chlorine, fluorine or bromine — safe for all markets
Why Buy FEP Polyimide Film from INSOURCES Insulation?
Manufacturer — Not a Trader
We manufacture FEP polyimide film directly. No middlemen — better pricing, faster lead times and direct technical support for your FPC or cable application.
Both FH & FHF Available
Single-side and double-side FEP coated polyimide film in stock. Custom thickness and slit width available for OEM requirements.
Custom Sizes Available
Custom slit widths from 10 mm and up. Roll lengths to your production line specifications.
Certified Quality
CE, Mil-P-46123, RoHS/REACH, ISO 9001, ISO 14001. Full certification documentation with every order.
Pan-India Supply
Fast dispatch from Bhiwandi to Mumbai, Pune, Delhi, Bangalore, Chennai, Hyderabad and all major cities.
Export Ready
Exporting FEP polyimide film to USA, UK, UAE, Germany, Singapore, Malaysia and more.
Supply & Packaging
- Standard Width: 520 mm | Custom slit widths available
- Roll Length: 1500 m standard | Custom lengths available
- Packaging: Rolls on plastic/cardboard cores, wrapped in polyethylene film
- Storage: 15°C–30°C, 40%–70% RH, away from sunlight
- Shelf Life: 24 months from manufacture date
- Lead Time: 2–5 working days (standard) | 7–14 days (custom orders)
Related Polyimide Film Products
- HN Polyimide Film — Standard kapton-type PI film, HN-05 to HN-10
- Black Polyimide Film — Opaque black polyimide film for EMI shielding
- ESD Polyimide Film — Anti-static polyimide film for PCB protection
- Corona Resistant Polyimide Film — CR PI film for inverter duty motors
- NHN Polyimide Composite Film — PI/non-woven laminate for motor slot insulation
- Thermal Conductive Polyimide Film — MT Series for heat dissipation
- Aluminized Polyimide Film — Metallized polyimide film for EMI shielding
- Colourful PI Film — Red, green and transparent polyimide film
Frequently Asked Questions — FEP Polyimide Film
What is FEP polyimide film used for?
What is the difference between FH and FHF grades?
Is FEP polyimide film a kapton-type film?
What is the price of FEP polyimide film in India?
Do you supply custom widths of FEP polyimide film?
About INSOURCES EXIM PVT LTD
INSOURCES EXIM PVT LTD is a manufacturer of polyimide films and polyimide products based in Bhiwandi, Maharashtra, India. We supply the complete range of kapton-type PI films — HN, FEP, Black, ESD, CR, NHN, Aluminized, Thermal-Conductive, Colourful and Voice Coil — to motor manufacturers, transformer OEMs, electronics companies and PCB fabricators across India and internationally.
